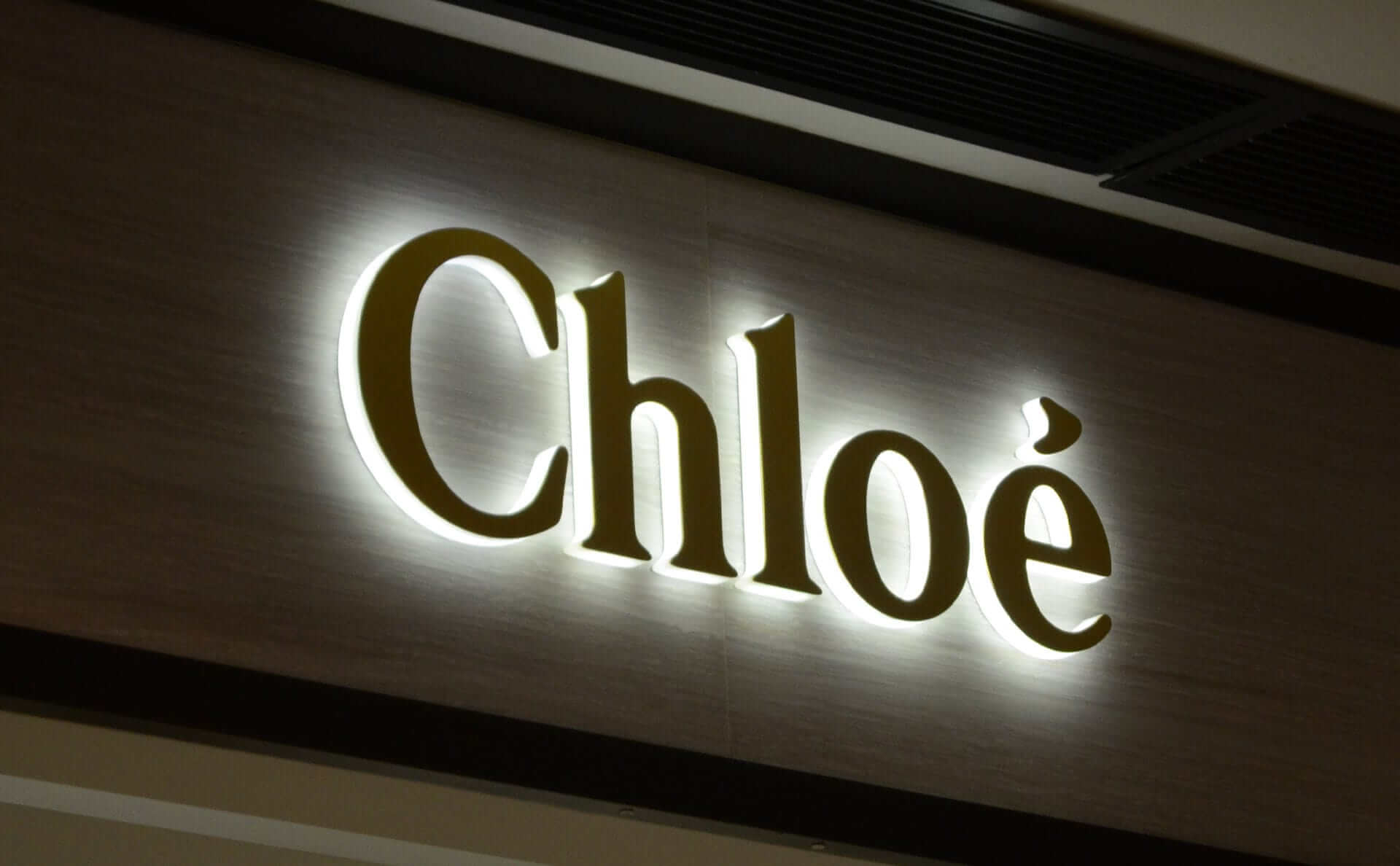

Description Of Side Lit Channel Letters Signs

Side lit channel letters signs are very beautiful, only the border is illuminated, the letters are separated. Individual fabricated acrylic signage shell or CNC engraved acrylic signage shell with nontransparent signs surface, which could be painted directly or black acrylic, laser cut stainless steel or aluminum, etc. LEDs are installed in the signs shell, this kind of signage can bring out the contents of the signs well.

Both the logo and the letters are all could be the custom side Lit channel letters, whether indoor or outdoor, our high quality custom side lit channel letters signs will last for years, helping your business stand out.

On our LED Side-lit Signs Gallery you can find a lot of side lit channel letters signs cases.

Most of the current side lit channel letters signs use safe LEDs as light sources, so an AC transformer will be used to provide 12VDC power for LEDs. Need to set up electrical junctions in the ceiling near the sign installation position or behind the wall.
The brightness of the LED will decrease after about 2-3 years, but this does not mean that the LED cannot be lit. If you feel that the brightness of the logo cannot provide you with a satisfactory display effect, you need to consider replacing the LED. In fact, many of our customers have used the side lit channel letters signs for more than 5 years without replacing anything.
The distance between the AC transformer and the side lit channel letters signs needs to be controlled within 5 meters (about 16.4 feet), too far will cause excessive DC voltage loss.
The AC transformer is best installed in a weak current box with cooling holes or placed in a place with good ventilation. so that the transformer can dissipate heat normally and increase the service life of the AC transformer.
We suggest hiring a professional installer to install the signs, we will provide the wiring diagram and installation notice, so the signs could be installed correctly and quickly.
If it is to be used outdoors and there are frequent heavy rains in the area, we will use the IP67 LED and add water leakage holes at the bottom of the signs shell then do anti-light leakage treatment.

Visibility

Side lit channel letters Signs have a good viewing distance. According to experience, there is a certain proportional relationship between the height of a letter and the viewing distance. The viewing distance of a letter is about 100-120 times the height of the letter. For example, a letter with a height of 10cm can be read at a distance of about 10 meters, and a letter with a height of 10 inches can be read at a distance of about 100 feet.

Installation

Side lit channel letters signs can be installed in the following ways:

Direct Mount: Side lit channel letters signs are mounted directly to the wall by stud bolts, needing drill holes in the wall to install stud bolts and through wires.
Raceway installation: Side lit channel letters signs are mounted on the raceway, raceway is a rectangular mounting structure which serves as both a container for the channel letters’ cables, even AC transformer, and a mounting structure. Then the signs and raceway are mounted on the wall as a whole. Compared with direct installation, using raceway installation can make installation easier, because there is no need to drill many holes in the wall. Mostyl, each channel letter has 3 stud bolts and 1 wire, If it is installed directly, it needs to drill 4 holes on the wall. Then for a set of signs to have 10 letters, it needs to drill at least 40 holes, but if it is installed on the raceway, it probably means that 10 holes is enough.
Hanging installation: use stainless steel rope or stainless steel round tube to hang from the ceiling, or hang from the bracket.
Bracket installation: similar to raceway installation, the signs are installed on the bracket, then the signs and the bracket are installed on the wall together.

Maintain

As long as the side lit channel letters signs are installed correctly, the maintenance is very simple, just wipe the dust with a soft cloth moistened with clean fresh water, never use organic solvents to clean, especially for signs with plating or paint layers.

Quick Form

Featured Signs

Faux Neon Signs: The letters are separated, 3D metal letters signs with LED inside, using CNC engraved acrylic to simulate neon glass tubes, and the front surface are all illuminated, perfect neon style. Fit for outdoor and indoor.
Marquee Neon Signs: The letters of are separated, 3D metal letters signs with LED inside, using CNC engraved acrylic to simulate neon glass tubes, and the front surface are all illuminated, with open face channel outside, perfect neon style and maquee style. Fit for outdoor and indoor.
Backlit Channel Letters Signs: The letters are separated, 3D metal or acrylic letters signs with LED inside, the back-panel is illuminated, which amazing halo effect. Fit for outdoor and indoor.
Front Lit Channel Letters Signs: The letters are separated, 3D metal or acrylic letters signs with LED inside, the front surface is illuminated, very bright. Fit for outdoor and indoor.
Front and Backlit Channel Letters Signs: The letters are separated, 3D metal or acrylic letters signs with LED inside, the front surface and back-panel are all illuminated, beautiful effect. Fit for outdoor and indoor.

Workflow

1: Quotation

Please let us know your requirements well by using our quote form, one of our sales staff will get back to you within one business day and send a quotation file to you ASAP.
2: Payment

Once you confirm the quotation, we will send a PayPal Invoice to you so that you can complete the payment. Please use your PayPal account to complete the payment. Also accept TT.
3: Detailed Design

Once our finance team confirms that we have received your payment, we will start a detailed design process, and we will send you the drawing file for your confirmation.
4: Production

We will begin the production when we have received your confirmation for the detailed design drawing. Most signage production cases will be finished in 15 business days.
5: Proof

When we finish the production, we will have a test to check the issue, if everything is fine, we will send you the photo proof of your signs for your confirmation before shipment.
6: Shipment

We use DHL door to door delivery by DDU terms by default, the shipping time is about 5 days. Also can use other express companies such as UPS, FEDEX, TNT, etc., also could use air freight.
